In today’s competitive market, you need robust CNC turning centers with uncompromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.

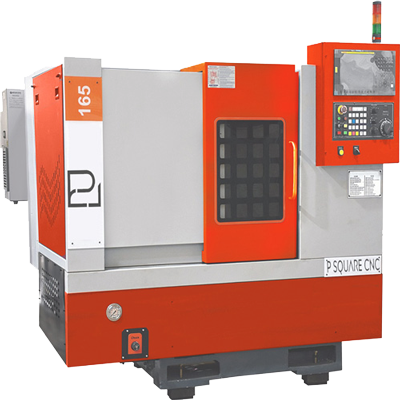

| DESCRIPTION | Unit | SMAUG 165L |
| CAPACITY | ||
| Standard Turning Dia. | mm | 250 |
| Maximum Turning Dia. | mm | 280 |
| Swing Over Bed | mm | 500 |
| Maximum Turning Length | mm | 440 |
| SLIDES | ||
| Rapid Feed (X & Z axes) | m/min | 24 |
| MAIN SPINDLE | ||
| Spindle Nose | A2-5 | |
| Spindle Bore | mm | 42 |
| Max. Bar Capacity | mm | 42 |
| Chuck Size | mm | 200 |
| Speed Range | rpm | 50 - 2500 |
| Spindle Motor | kW | 5.5 / 7.5 |
| TOOLING ARRANGEMENT | ||
| No. of Tools | - | 4 |
| Tool Size | mm | 20 x 20 // 25 x 25 |
| Max. Boring Bar Capacity | mm | 25 |
| Positioning Accuracy | mm | 0.008 |
| Repeatability | mm | 0.007 |
| OTHER DATA | ||
| Weight (Approx) | Kg | 1100 |
| Machine Dimensions (WxDxH) (Approx) | mm | 1890 X 1450 X 1450 |
| CNC SYSTEM | ||
| P SQUARE CNC | NEW1000TDCb-2 | |
| LNC | T5800 | |
| Siemens | 808D ADVANCE | |
| Mitsubishi | E80 | |
